ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
1/2"NB TO 48"NB IN.
Seamless and Welded.
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.
Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM B366 / ASME SB366 Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel 783, Inconel 690, Inconel X750, Incoloy 800/800H/800HT, Incoloy 825, Incoloy 925, Hastelloy C276, Hastelloy C22, Hastelloy C4, Hastelloy C2000, Hastelloy B2, Hastelloy B3, Hastelloy X.
Nickel 200 is a commercially pure nickel alloy known for its excellent mechanical properties, high thermal and electrical conductivity, and exceptional corrosion resistance. With a nickel content of at least 99%, it is highly resistant to various chemicals, particularly caustic alkalies, and performs well in reducing environments. This material is commonly used in the food processing, chemical, and aerospace industries for applications such as storage tanks, piping systems, and electrical components. Nickel 200 also exhibits good ductility and formability, making it suitable for a wide range of fabrication techniques.

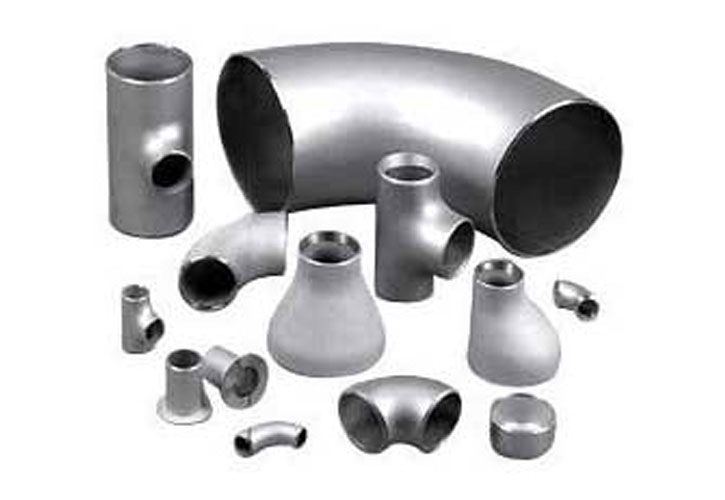

The primary types of buttweld fittings in Alloy 200 include elbows, tees, caps, and stub ends. Nickel 200 Elbows are used to change the direction of the flow, available in 45-degree and 90-degree angles. Nickel 200 Tees allow for the branching of the flow into two directions, while reducers are used to connect pipes of different diameters. Nickel 200 Caps are used to seal the ends of pipes, and Nickel 200 stub ends are used in conjunction with lap joint flanges.
Nickel 200 Pipe Fittings are crucial in industries requiring high corrosion resistance and durability. In chemical processing, they handle caustic solutions in reactors and piping. In food processing, they prevent contamination in contact with food products. Aerospace applications use these fittings for fuel and hydraulic lines, thanks to their ability to endure extreme conditions. In marine environments, Nickel 200 fittings resist saltwater corrosion in seawater and offshore applications. Proper installation and adherence to industry standards are essential for maintaining the performance and safety of these systems.
| STANDARD | UNS | WNR | JIS | BS | AFNOR | EN | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | 2.4060 | - | NA 11 | - | - | - | - |
| Element | Nickel 200 |
|---|---|
| Nickel (Ni) | 99.0% min |
| Iron (Fe) | 0.40% max |
| Manganese (Mn) | 0.35% max |
| Carbon (C) | 0.15% max |
| Silicon (Si) | 0.35% max |
| Copper (Cu) | 0.25% max |
| Alloy | Tensile Strength (MPa) | Yield Strength (0.2% offset) (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| Nickel 200 | 550 | 150 | 40 | HRB 45-80 |
For accurate installations, refer to the dimensions, size, weight chart, and tolerances of Nickel 200 fittings. These fittings, including elbows, tees, reducers, and caps, come in various nominal pipe sizes with specific outside diameters and weights. Standard tolerances are typically ±1% for outside diameters and ±2% for lengths, ensuring precise fitting.
