ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
1/2"NB TO 48"NB IN.
Seamless and Welded.
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.
Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM B366 / ASME SB366 Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel 783, Inconel 690, Inconel X750, Incoloy 800/800H/800HT, Incoloy 825, Incoloy 925, Hastelloy C276, Hastelloy C22, Hastelloy C4, Hastelloy C2000, Hastelloy B2, Hastelloy B3, Hastelloy X.
Inconel 783, also known as Inconel Alloy 783 or Inconel 783 Alloy, is a high-strength, oxidation-resistant nickel alloy primarily composed of nickel, chromium, and iron, with significant additions of aluminum and titanium. This alloy is specifically designed to offer exceptional creep-rupture strength at elevated temperatures up to 1800°F (980°C). Inconel 783 exhibits excellent resistance to oxidation and corrosion, making it suitable for use in environments where thermal stability and mechanical strength are crucial.

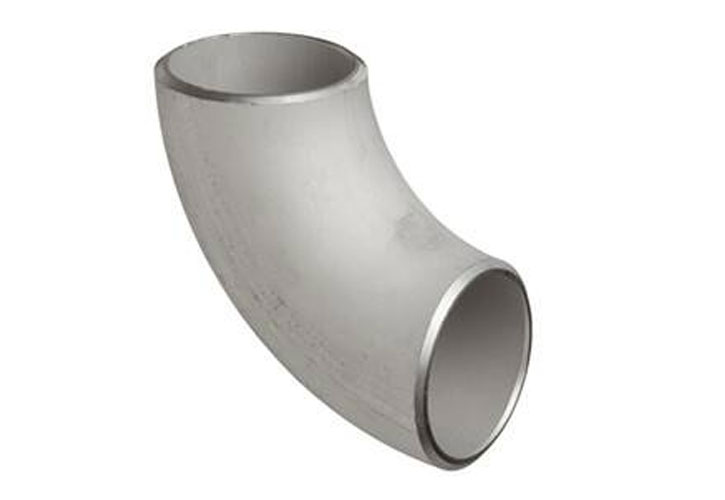

Inconel 783 buttweld fittings adhere to several dimensional standards to ensure compatibility and reliability in various industrial applications. These fittings are manufactured according to ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS1560, BS4504, and BS10 specifications, ensuring precision and compliance with international norms. Available in sizes ranging from 1/2"NB to 48"NB, both seamless and welded types cater to diverse piping requirements in industries. They come in various thicknesses, including Schedule 5S, 10S, 20S, STD, 40S, XS, 80S, and XXS, accommodating different pressure ratings and environmental demands. Common forms include elbows, equal tees, U pipe bends, long and short stub ends, caps, and lap joint stub ends, providing versatility for complex piping systems. Manufactured under ASTM B366/ASME SB366 standards, Inconel 783 buttweld fittings combine high strength, oxidation resistance, and durability to withstand harsh operating conditions with reliability and longevity.
Applications of Inconel 783 include components in gas turbine engines, such as seals, combustion chambers, and other high-temperature sections. Its ability to maintain integrity under extreme conditions makes it valuable in aerospace, power generation, and industrial processing applications where reliability and performance under stress and heat are critical. Inconel 783's unique properties and resistance to degradation at high temperatures make it a preferred choice for components exposed to aggressive thermal and environmental conditions, ensuring longevity and efficiency in demanding operational environments.
| STANDARD | UNS | WNR | JIS | BS | AFNOR | EN | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Inconel 783 | N07783 | - | - | - | - | - | - | - |
| Alloy | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Iron (Fe) | Copper (Cu) | Niobium (Nb) + Tantalum (Ta) | Aluminum (Al) | Titanium (Ti) | Carbon (C) | Silicon (Si) | Sulfur (S) | Phosphorus (P) | Manganese (Mn) | Boron (B) | Lead (Pb) | Tellurium (Te) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inconel 783 | 49% | 20% | - | 21% | - | - | - | - | 0.15% | 1.5% | 0.015% | 0.015% | - | 0.006% | 0.003% | 0.002% |
| Alloy | Tensile Strength (MPa) | Yield Strength (0.2% offset) (MPa) | Elongation (%) |
|---|---|---|---|
| Inconel 783 | 850 | 550 | 17 |
These charts and specifications are typically provided by manufacturers and suppliers of Alloy 783 pipe fittings, ensuring that you can select the right fittings for your application with confidence in their quality and compliance with industry standards. For specific projects, consulting these charts helps in making informed decisions and ensuring efficient installation and operation of Inconel 783 pipe fittings in high-stress and corrosive environments.
