ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
1/2"NB TO 48"NB IN.
Seamless and Welded.
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.

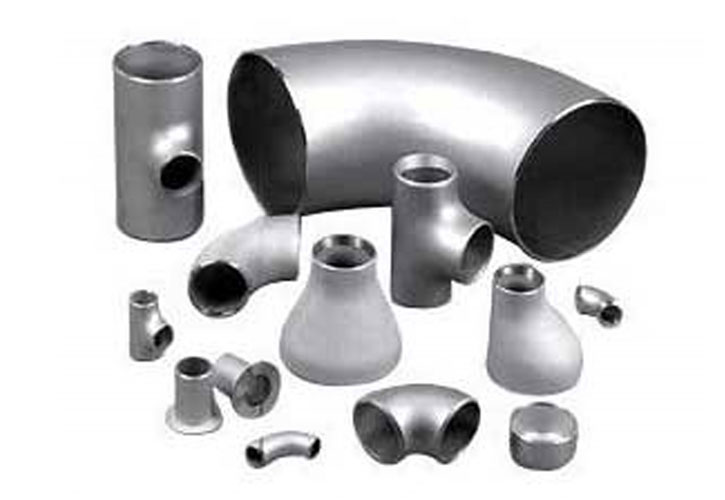

Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM B366 / ASME SB366 Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel 783, Inconel 690, Inconel X750, Incoloy 800/800H/800HT, Incoloy 825, Incoloy 925, Hastelloy C276, Hastelloy C22, Hastelloy C4, Hastelloy C2000, Hastelloy B2, Hastelloy B3, Hastelloy X.
Incoloy 925 is a nickel-iron-chromium alloy with significant additions of molybdenum, copper, titanium, and aluminum. This composition enhances its mechanical strength and corrosion resistance properties. It is specifically engineered to withstand aggressive environments, including those containing sulfuric and phosphoric acids. Incoloy 925 is known for its resistance to stress corrosion cracking and oxidation at elevated temperatures, making it a suitable material for applications in industries such as oil and gas, marine, and chemical processing where durability and reliability are paramount.
The manufacturing of Incoloy 925 buttweld equal and unequal tees begins with the selection of high-quality raw materials based on specific alloy composition requirements. These materials are heated and shaped into tee forms using hydraulic presses or hammers. Welding processes such as TIG (Tungsten Inert Gas) or submerged arc welding securely join the components. Depending on application needs, heat treatment processes may be employed to enhance mechanical properties. Finally, tees undergo rigorous inspection for dimensional accuracy and surface finish, including treatments like pickling or passivation for improved corrosion resistance.
Incoloy 925 buttweld fittings undergo rigorous inspection processes post-manufacturing to ensure adherence to strict quality standards. This includes comprehensive checks for dimensional accuracy, surface finish, and mechanical properties, ensuring they meet exact specifications for reliable performance in demanding environments. Following inspection, the fittings are meticulously packaged using materials that safeguard against corrosion and physical damage, such as plastic wrapping, foam inserts, and robust boxes. Clear labeling with essential details like part numbers and sizes facilitates easy identification and handling, ensuring the fittings arrive in optimal condition for installation in critical applications across industries requiring high corrosion resistance and durability.
| STANDARD | UNS | WNR | JIS | BS | AFNOR | EN | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 925 | N09925 | - | - | - | - | - | - | - |
| Alloy | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Iron (Fe) | Copper (Cu) | Niobium (Nb) + Tantalum (Ta) | Aluminum (Al) | Titanium (Ti) | Carbon (C) | Silicon (Si) | Sulfur (S) | Phosphorus (P) | Manganese (Mn) | Boron (B) | Lead (Pb) | Tellurium (Te) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Incoloy 925 | 42-46% | 19.5-22.5% | 2.5-3.5% | 22% min | 1.5-3% | - | 0.9-1.9% | 0.6-1.2% | - | - | 0.03% max | 0.03% max | - | - | - |
| Alloy | Tensile Strength (MPa) | Yield Strength (0.2% offset) (MPa) | Elongation (%) |
|---|---|---|---|
| Incoloy 925 | 1000 | 750 | 25 |
Checking the dimensions, size, weight chart, and tolerance specifications of available Incoloy 925 buttweld fittings is crucial to ensure they meet precise engineering requirements and industry standards. This verification process ensures that the fittings are suitable for their intended applications, where dimensional accuracy, proper fitment, and adherence to weight and tolerance limits are critical.
