1D Elbow Pipe Fitting

ISO Certified manufacturer of high-pressure ASME B16.9 stainless steel custom 1D bends, industrial carbon steel seamless & welded long radius 1D elbows in size range from 1/2" to 72" Inch.

1D elbows or bends are critical components in piping systems, designed to facilitate directional changes with minimal pressure drop and flow disruption. The term "1D" refers to the bend radius being equal to the nominal pipe diameter, resulting in a tight and compact curve. These fittings are used extensively in industries such as oil and gas, petrochemical, power generation, and water treatment, where space constraints and precise flow control are essential.

Seamless 1D bends are manufactured from a single piece of metal without any welded joints, providing superior strength and uniformity. They are typically available in sizes ranging from 1/2" to 24" nominal pipe size (NPS) with wall thicknesses conforming to various schedules, including SCH 5, SCH 10, SCH 40, and SCH 80. The seamless construction ensures high resistance to pressure, making these bends ideal for high-stress and high-pressure applications. Common materials used for seamless bends include stainless steel, carbon steel, and alloy steel, each chosen based on the specific requirements of the service environment.

Welded 1D bends, on the other hand, are fabricated by welding sections of pipe to achieve the desired curvature. This method is particularly advantageous for larger diameter pipes, typically ranging from 26" to 72" NPS and beyond. The welding process allows for greater flexibility in manufacturing custom radii and angles, making it possible to create segmented or mitred bends as needed. However, the presence of weld seams necessitates thorough inspection and testing to ensure structural integrity and compliance with standards such as ASME B16.9 and MSS SP-75.

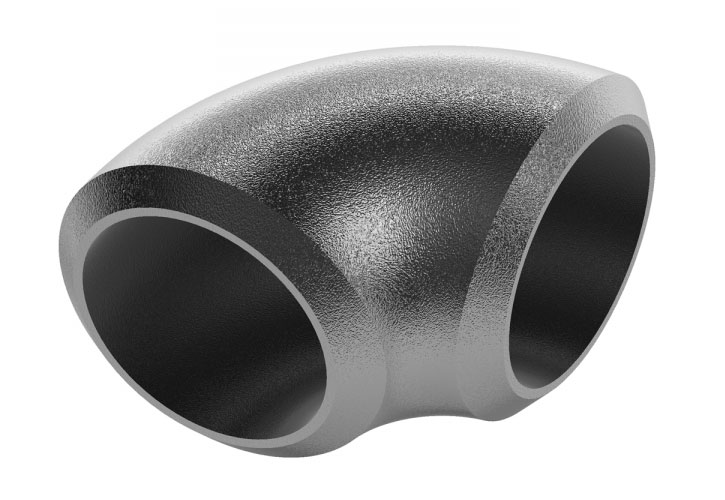

1D elbows are produced in various forms, including 45-degree, 90-degree, and 180-degree return bends. The choice of form depends on the specific routing requirements of the piping system. For example, a 45-degree elbow might be used for gentle directional changes, while a 90-degree elbow facilitates a right-angle turn. The 180-degree return bends are utilized to reverse the flow direction within a limited space. Each type of bend must adhere to strict dimensional tolerances and material specifications to ensure compatibility and performance in service.
