ANSI B16.9, MSS SP-75, ASME B16.28.
Seamless: NPS 1/2" to 24", OD 21.3 mm to 609.6 mm.
Welded: NPS 26" to 72" and larger, 660.4 mm to 1829 mm and larger.
SCH 5, SCH 10, SCH 20, SCH 30, SCH 40 (STD), SCH 60, SCH 80 (XS), SCH 100, SCH 120, SCH 140, SCH 160, XXS (Double Extra Strong).
1.5D Bends: Long Radius, Short Radius, Custom Radius, Segmented Bends, Mitred Bends, 45-Degree, 90-Degree, 180-Degree Return Bends.
Stainless Steel, Carbon Steel, Alloy Steel, Super Duplex, Duplex Steel, High Nickel Alloys, Copper Nickel.

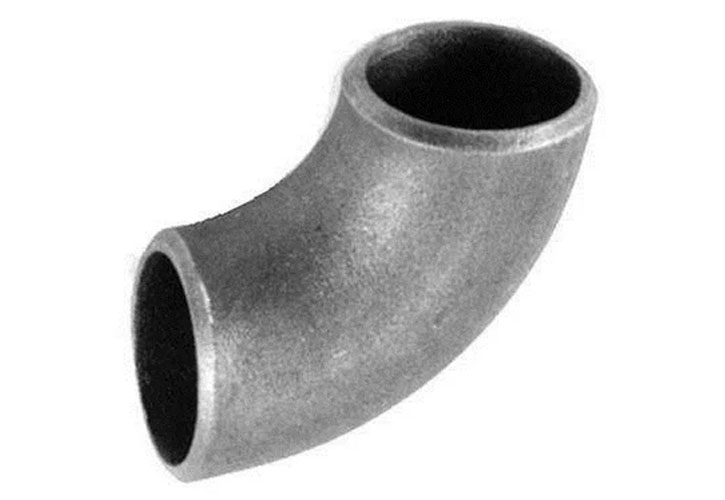

A 1.5D elbow is a specialized pipe fitting designed to change the direction of flow in piping systems. The term "1.5D" indicates that the radius of the elbow's curve is 1.5 times the nominal diameter (D) of the pipe it is connected to. For example, if the pipe diameter is 4 inches, the 1.5D elbow will have a bend radius of 6 inches. The 1.5D elbow's compact design makes it ideal for systems where space is a premium and where a sharp change in direction is required without significantly impacting the flow characteristics.
1.5D Bends are particularly useful in applications where space constraints necessitate a tighter bend radius compared to other standard elbows, such as 2D or 3D elbows, which have larger bending radii. The compact design of the 1.5D elbow makes it ideal for installations requiring efficient use of space while still maintaining smooth flow characteristics.
A seamless 1.5D elbow is manufactured from a single piece of material without any welded joints. The production process involves heating a solid billet, then shaping it into an elbow through a series of rolling and forming operations. This method ensures a uniform structure and strength throughout the elbow, making it highly reliable and capable of withstanding high pressure and temperature conditions.
A welded 1.5D elbow is made by bending a pipe and then welding the seam. This process can involve welding a single seam or multiple seams, depending on the elbow's size and required specifications. The welded elbows are usually subjected to heat treatment and rigorous quality inspections to ensure the weld's integrity and overall performance.
NPS (Nominal Pipe Size) | A (mm) | B (mm) | C (mm) |
---|---|---|---|
1/2" | 38 | 21.3 | 2.77 |
3/4" | 57 | 26.7 | 2.87 |
1" | 76 | 33.4 | 3.38 |
1 1/2" | 114 | 48.3 | 3.68 |
2" | 152 | 60.3 | 3.91 |
2 1/2" | 190 | 73.0 | 5.16 |
3" | 229 | 88.9 | 5.49 |
4" | 305 | 114.3 | 6.02 |
6" | 457 | 168.3 | 7.11 |
8" | 610 | 219.1 | 8.18 |
10" | 762 | 273.1 | 9.27 |
12" | 914 | 323.9 | 9.52 |
14" | 1067 | 355.6 | 9.52 |
16" | 1219 | 406.4 | 9.52 |
18" | 1372 | 457.0 | 9.52 |
20" | 1524 | 508.0 | 9.52 |
24" | 1829 | 610.0 | 9.52 |
Tolerance Category | Specification | Tolerance |
---|---|---|
Outside Diameter (OD) Tolerances | OD ≤ 1.5 in. (38 mm) | ±0.06 in. (±1.5 mm) |
1.5 in. < OD ≤ 4 in. (38 mm < OD ≤ 100 mm) | ±0.09 in. (±2.3 mm) | |
4 in. < OD ≤ 24 in. (100 mm < OD ≤ 610 mm) | ±0.12 in. (±3 mm) | |
OD > 24 in. (610 mm) | ±0.19 in. (±4.8 mm) | |
Wall Thickness Tolerances | Minimum wall thickness at any point | Not less than 87.5% of nominal thickness |
Maximum wall thickness | Not specified | |
Center-to-End (A) Tolerances | NPS ≤ 10 | ±0.06 in. (±1.5 mm) |
12 ≤ NPS ≤ 18 | ±0.12 in. (±3 mm) | |
20 ≤ NPS ≤ 24 | ±0.19 in. (±4.8 mm) | |
Angle Tolerances | All sizes | ±1° |
Radius (R) Tolerances | All sizes | ±5% of nominal radius |
Out-of-Roundness (Ovality) | OD ≤ 1.5 in. (38 mm) | ±1.5% of OD |
OD > 1.5 in. (38 mm) | ±1% of OD | |
Alignment Tolerances | NPS ≤ 10 | ±0.06 in. (±1.5 mm) per foot (305 mm) |
NPS > 10 | ±0.09 in. (±2.3 mm) per foot (305 mm) |
