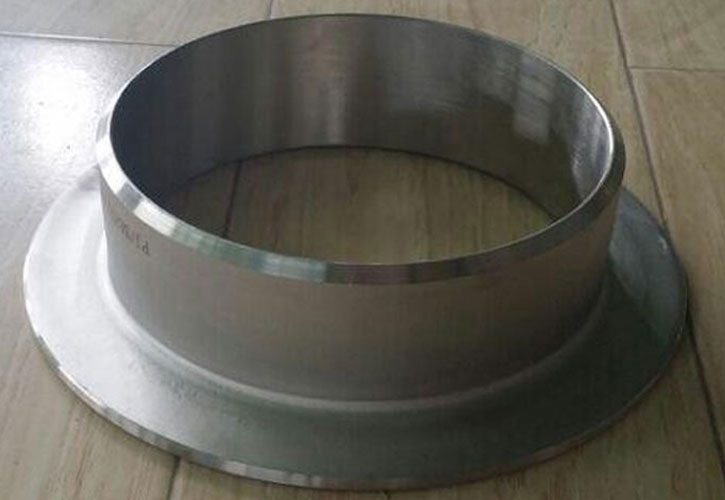

ANSI/ASME B16.9 Short Stub End Fittings

Specialist in Manufacturer of Carbon steel Short stub end, Short stub end Stainless Steel, Short Stub End Welding, Short Stub End Flange, Short Stub End Types - 1/2 inch to 24 inches.

A short stub end is a short piece of pipe or fitting with an end designed for butt welding to a pipe or fitting. It typically has a short length and may feature a beveled edge to facilitate a strong and secure weld joint. The defining feature of a short stub end is its reduced length compared to longer stub ends. This short length helps in applications where a compact design is needed. Most buttweld short stub ends come with beveled edges, which assist in creating a stronger weld joint. The beveling allows for better weld penetration and alignment. Some may have plain ends for straightforward welding or connection with other fittings.

The manufacturing process of a short stub end begins with selecting raw materials such as carbon steel or stainless steel, which are then cut to the appropriate length. The material is formed into a cylindrical shape and machined to achieve precise dimensions. For buttweld short stub ends, the ends are beveled to facilitate strong weld joints.

Following machining, the stub ends undergo heat treatment to enhance their mechanical properties. Quality control checks are performed to ensure compliance with industry standards like ANSI B16.9. Finally, the finished short stub ends are cleaned, coated if needed, and prepared for shipment, ensuring they meet the required specifications and are ready for industrial use.

A beveled short stub end features an angled edge at the end, designed to facilitate a strong and secure butt weld. This beveling ensures better weld penetration and alignment, making it ideal for high-pressure and high-stress applications. Its short length combined with the beveled edge allows for effective welding in confined spaces, providing a reliable connection in piping systems.

The main difference between long and short stub ends is their length. Long stub ends have a greater length, providing more surface area for welding and additional support in complex connections. Short stub ends, on the other hand, are shorter, making them suitable for applications with space constraints and easier to install in tight areas. Both are chosen based on specific installation needs and system requirements.
