ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
1/2"NB TO 48"NB IN.
Seamless and Welded.
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.
Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM B366 / ASME SB366 Nickel 200, Nickel 201, Monel 400, Monel 500, Inconel 600, Inconel 601, Inconel 625, Inconel 718, Inconel 783, Inconel 690, Inconel X750, Incoloy 800/800H/800HT, Incoloy 825, Incoloy 925, Hastelloy C276, Hastelloy C22, Hastelloy C4, Hastelloy C2000, Hastelloy B2, Hastelloy B3, Hastelloy X.

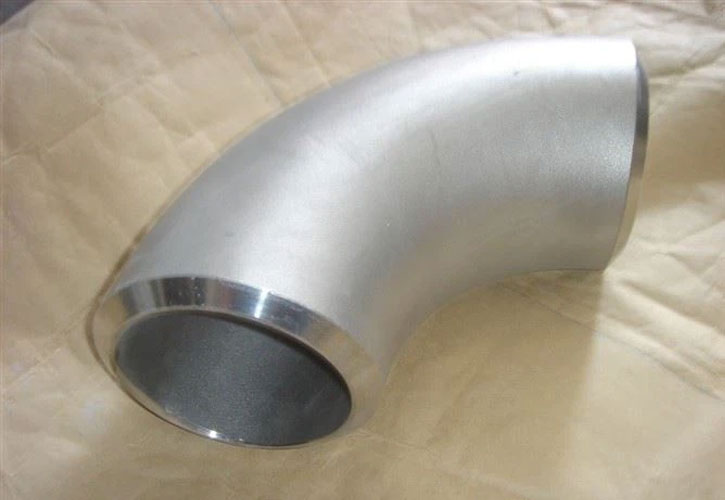

Hastelloy B2 buttweld fittings, designed to meet various dimensional standards such as ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS1560, BS4504, and BS10, are available in sizes ranging from 1/2" NB to 48" NB. These fittings come in both seamless and welded types, offering flexibility for different applications. The thickness of these fittings is specified by schedules including Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, and XXS, catering to various pressure and flow requirements. The forms available for these buttweld fittings include Elbows, Equal Tees, U Pipe Bends, Long & Short Stub Ends, Caps, and Lap Joint Stub Ends. Manufactured according to ASTM B366 / ASME SB366 standards, Hastelloy B2 fittings and their equivalents (UNS N10665, DIN 2.4617, EN NiMo28, BS NA 12, AFNOR Nu-30M) provide exceptional resistance to corrosive environments, ensuring reliability and durability in demanding industrial applications.
The performance assurance of Hastelloy B2 fittings stems from their exceptional corrosion resistance and mechanical properties, specifically tailored for challenging industrial environments. Hastelloy B2, composed primarily of nickel and molybdenum with added elements for enhanced durability, excels in resisting a wide range of corrosive substances such as hydrochloric acid, sulfuric acid, and phosphoric acid. This alloy's resistance to stress corrosion cracking and pitting corrosion further enhances its reliability in critical applications across chemical processing, petrochemical, and pharmaceutical industries.
The longevity of Hastelloy B2 fittings is underscored by their ability to withstand high temperatures and corrosive atmospheres, contributing to extended service life and reduced maintenance costs. Their proven track record in maintaining operational integrity under harsh conditions makes Hastelloy B2 fittings a trusted choice for industries where reliability, durability, and performance are paramount.
| STANDARD | UNS | WNR | JIS | BS | AFNOR | EN | GOST | OR |
|---|---|---|---|---|---|---|---|---|
| Hastelloy B2 | N10665 | 2.4617 | NW 6625 | NA 55 | - | - | - | - |
| Alloy | Nickel (Ni) | Chromium (Cr) | Molybdenum (Mo) | Iron (Fe) | Tungsten (W) | Cobalt (Co) | Copper (Cu) | Aluminum (Al) | Titanium (Ti) | Carbon (C) | Silicon (Si) | Sulfur (S) | Phosphorus (P) | Manganese (Mn) | Boron (B) | Lead (Pb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy B2 | Remainder | 1% max | 26-30% | 2% max | - | 1% max | - | - | - | 0.02% max | 0.10% max | 0.03% max | 0.04% max | 1% max | - | - |
| Alloy | Tensile Strength (MPa) | Yield Strength (0.2% offset) (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| Hastelloy B2 | 690 | 310 | 40 | HRB 89-100 |
For detailed dimensions, size charts, weight charts, and tolerance specifications of Hastelloy B2 fittings products, it's best to refer to specific manufacturers or suppliers who provide these products. Typically, such technical specifications can vary slightly between manufacturers based on production processes and standards adherence.
