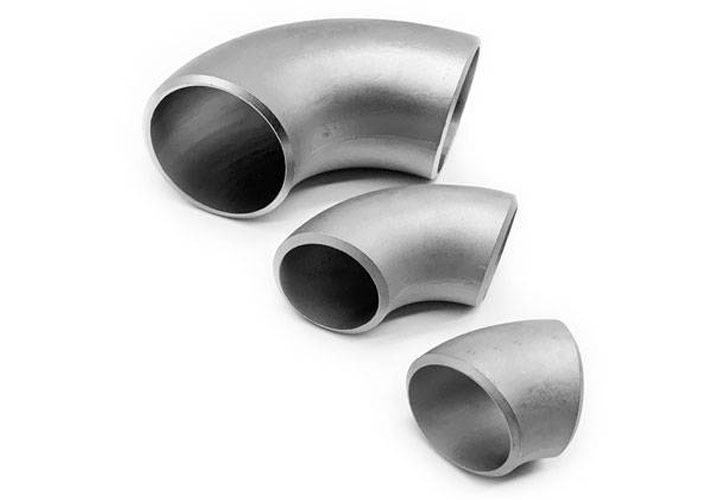

ASTM B366 Monel k500 Buttweld Fittings

Preferred Manufacturer of Monel k500 Long & Short Stub End, DIN 2.4375 Hot Induction Bend, UNS N05500 U Bend, Piggable Bend, 1D, 1.5D, 3D, 5D, 10D Elbow.

Monel K500 is a precipitation-hardenable nickel-copper alloy known for its enhanced mechanical properties and superior corrosion resistance. Composed primarily of nickel and copper with additions of aluminum and titanium, it gains strength through aging treatments, making it ideal for applications requiring high tensile strength, toughness, and resistance to corrosion in harsh environments like marine and chemical processing industries. Its versatility in pump shafts, valve components, and aerospace equipment underscores its value in critical applications where reliability and durability are essential.

Monel K500 buttweld fittings adhere to a variety of dimensional standards including ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS1560, BS4504, and BS10, ensuring compatibility and ease of integration into diverse piping systems. Available in sizes ranging from 1/2"NB to 48"NB in both seamless and welded types, these fittings accommodate various thicknesses specified by Schedule 5S to XXS. Common forms include elbows, equal tees, U pipe bends, long and short stub ends, caps, and lap joint stub ends, meeting ASTM B366/ASME SB366 standards for Monel K500.

Inspecting Monel K500 pipe fittings involves a comprehensive approach to ensure their quality and suitability for various applications. Beginning with visual inspection to detect surface imperfections, such as cracks or corrosion, the process moves to dimensional checks per ASME/ANSI B16.9 standards, verifying critical dimensions and material composition as per ASTM B366/ASME SB366. Non-destructive testing methods like ultrasonic and radiographic testing assess internal integrity and weld quality, while pressure testing confirms fittings can withstand specified pressures without leakage. Visual examination of welds ensures they meet standard requirements, and surface finish inspections verify smoothness and cleanliness. Complete documentation of inspection results, including material test reports and traceability records, ensures compliance and reliability of Monel K500 fittings in industries requiring corrosion resistance and mechanical strength.
