ASTM A403 WP316h Stainless Steel Elbow (1D, 1.5D, 3D, 5D, 10D), Buttwled Tee, UNS S31609 Hot Induction Bend, WNR 1.4919 U Bend Pipe Fittings.

Contact:

316h Long & Short Radius 45°, 90°, 180° Elbow Specifications

Dimensions:
ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10.
Size:
1/2"NB TO 48"NB IN.
Type:
Seamless and Welded.
Thickness:
Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS.
Form:
Elbow, Equal Tee, U Pipe Bend, Long & Short Stub End, Caps, Lap Joint Stub End
ASTM Standard / Grades:
ASTM A403 / ASME SA403 304, 304L, 304H, 316, 316L, 316H, 316Ti, 310, 310s, 310h, 317, 317L, 321, 321h, 347, 347h, 904L

Specialist in Manufacturer of ASTM A403 WP316H Buttweld Long & Short Stub End, U Bend, DIN 1.4401 Lap Joint Stub End, EN X5CrNiMo17-12-2 buttweld fittings, SUS316H pipe fittings, Hot Induction Bend, BS 316S51 Piggable Bend, JIS SUS316H End Cap Fittings

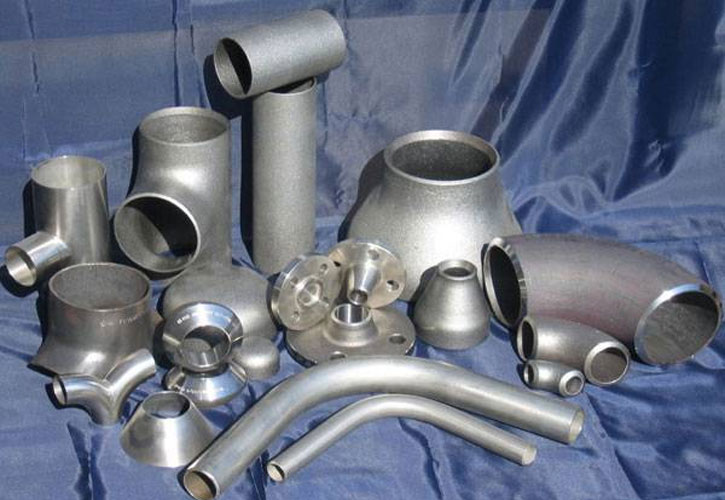

Stainless steel 316H buttweld fittings are essential components in piping systems, renowned for their high carbon content which enhances their strength at elevated temperatures. These fittings, which include elbows, tees, reducers, and caps, comply with ASTM A403 WP316H standards, ensuring excellent durability and resistance to corrosion. Designed to meet the rigorous demands of industrial applications, they are available in sizes ranging from 1/2" NB to 48" NB and can be either seamless or welded. Equivalent to EN 1.4401 (X5CrNiMo17-12-2) and UNS S31609, these fittings are ideal for high-temperature environments such as chemical processing, oil and gas, and power generation, where maintaining structural integrity and performance under thermal stress is crucial.

Stainless Steel 316H pipe fittings, available in seamless and welded forms, are crucial for high-temperature and high-pressure applications. Seamless 316H fittings, manufactured without joints, offer superior strength and uniformity, making them ideal for critical environments like chemical processing and power generation. Welded 316H fittings, created by welding pieces of stainless steel together, are cost-effective and versatile for larger diameters and custom shapes, suitable for industries such as oil and gas and marine environments. Both types comply with ASTM A403 WP316H standards, providing excellent corrosion resistance and durability. The choice between seamless and welded fittings depends on specific application requirements, balancing cost, pressure ratings, and installation flexibility.

When welding Stainless Steel 316H, ensure proper cleaning to remove contaminants and control heat input to prevent carbide precipitation and intergranular corrosion. Use TIG or MIG welding with a suitable filler material and an inert shielding gas like argon. Maintain interpass temperature, prepare joints accurately, and avoid cross-contamination. Conduct thorough inspections and tests to ensure high-quality welds, ensuring the material's performance and longevity in demanding applications.

Stainless Steel 316H fittings are ideal for high-temperature and corrosive environments in various industries. In chemical processing, oil and gas, and power generation, they provide reliable performance in high-pressure and high-temperature systems. In pharmaceuticals and food and beverage industries, they ensure hygienic and durable connections. For water treatment, pulp and paper, aerospace, and shipbuilding, 316H fittings offer excellent corrosion resistance and strength. Proper selection, installation, and maintenance of these fittings enhance the efficiency and longevity of industrial piping systems.
